Integrators

The integrator is selected at the command line with -i <name>. It determines how light transport is simulated.

Path tracer — -i path (default)

A unidirectional path tracer. Each camera ray spawns a path that bounces through the scene until it reaches a light source, escapes, or is terminated by Russian roulette. Direct lighting at each bounce is estimated by Next Event Estimation (NEE), and the NEE and BSDF-sampled contributions are combined using Multiple Importance Sampling (MIS) with the power heuristic (β = 2).

The MIS is deterministic (Veach's multi-sample model): every non-specular bounce shoots both a light ray (NEE shadow ray) and a BSDF ray (the path continuation), and sums their power-heuristic-weighted contributions — it never randomly selects a single strategy. The light strategy is weighted w = power(p_light, p_bsdf); the BSDF strategy's emission (collected when the continuation lands on an emitter) is weighted w = power(p_bsdf, p_light). Specular/delta lobes (pdf = 0) skip the light ray and carry weight 1. The two pdfs are mutually exact for single-emitter scenes; with multiple area lights NEE uses the selected light's pdf while the BSDF strategy uses the full light-mixture pdf — both unbiased.

Properties

Property Value
Global illumination Yes — indirect bounces, colour bleeding, caustics (via BSDF sampling)
MIS Power heuristic, β = 2
NEE One sample per area light, one sample per environment map
Russian roulette Starts at bounce 3; max survival probability 0.95
Hard depth cap 64 bounces

Light transport

  • Point lights — shadow ray per light; 1/r² falloff; MIS weight = 1 (delta distribution).
  • Area emitters — one NEE sample from a randomly chosen emitter, combined with BSDF-sampling MIS.
  • Environment map — one importance-sampled direction, combined with BSDF-sampling MIS.
  • Emissive hit via BSDF sampling — weighted against the area light PDF to avoid double-counting.

Usage

kestrel scene.xml -o output.exr           # path integrator (default)
kestrel scene.xml -o output.exr -i path   # explicit

The path integrator is the correct choice for scenes with indirect illumination, area lights, glass, and environment maps. Increase sampleCount in the scene file to reduce noise.

Direct illumination — -i direct and -i direct_bsdf

Single-bounce integrators. Only the first surface hit from the camera is shaded; no recursive scattering occurs. Each comes in a single, deliberately un-combined sampling strategy — these are the two estimators that the path integrator's MIS blends, exposed separately so their individual strengths and failure modes are visible (see the comparison below).

  • -i direct — light sampling (NEE) only. For each surface point, one NEE sample is drawn from each light source present. Clean on rough/diffuse surfaces; noisy on near-specular ones, where a sampled light point rarely lands inside the narrow BSDF lobe.
  • -i direct_bsdf — BSDF sampling only. One ray is scattered according to the BSDF; its contribution is kept if it lands on an emitter. Clean on near-specular surfaces; noisy on rough ones, where a wide BSDF sample rarely hits a small, bright light.

Properties

Property Value
Global illumination No — no interreflection or indirect colour bleeding
MIS None (each mode is a single strategy)
NEE direct: one sample per area light, one per environment map
Russian roulette None
Recursion depth 1 (camera ray + one shadow or scatter ray)

Light transport

  • Point lights (direct) — same as path integrator.
  • Area emitters — direct: one uniform NEE sample; direct_bsdf: emission kept when the scattered ray lands on the emitter. No MIS in either.
  • Environment map — direct: one importance-sampled direction; direct_bsdf: emission from the escaped ray. No MIS.
  • Specular surfaces — direct returns black on delta BSDFs (a sampled light direction is never the mirror direction); direct_bsdf handles them correctly.

Usage

kestrel scene.xml -o output.png -i direct        # light sampling
kestrel scene.xml -o output.png -i direct_bsdf   # BSDF sampling

The direct integrators are faster per sample and useful for: - Verifying material and lighting setup before a full path-traced render. - Scenes lit exclusively by point lights where indirect light is negligible. - Debugging: if the direct result looks wrong, the issue is in geometry or materials, not path-tracing logic.

They will underestimate brightness in scenes with significant indirect illumination (e.g. Cornell box, interior scenes).

Comparison: the Veach MIS scene

The classic test from Eric Veach's thesis (data/scenes/veach_mi/mi.xml) makes the trade-off concrete: four plates of increasing glossiness reflect four area lights of decreasing size. No single estimator is good everywhere.

kestrel data/scenes/veach_mi/mi.xml -i direct_bsdf -s 32 -o veach_bsdf.exr   # BSDF sampling only
kestrel data/scenes/veach_mi/mi.xml -i direct      -s 32 -o veach_light.exr  # light sampling only
kestrel data/scenes/veach_mi/mi.xml -i path        -s 32 -o veach_path.exr   # full path tracer w/ MIS
BSDF sampling (direct_bsdf) Light sampling (direct) Path tracer + MIS (path)
BSDF sampling Light sampling Path tracer with MIS

All three are rendered at 32 spp.

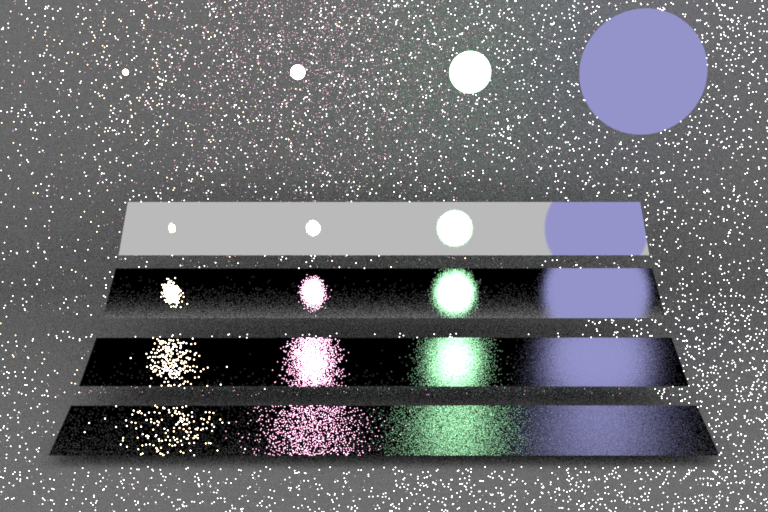

  • BSDF sampling is clean on the glossy plates (the scattered ray follows the lobe) but very noisy where the lights are small and bright — those directions are rarely sampled by a broad BSDF lobe.

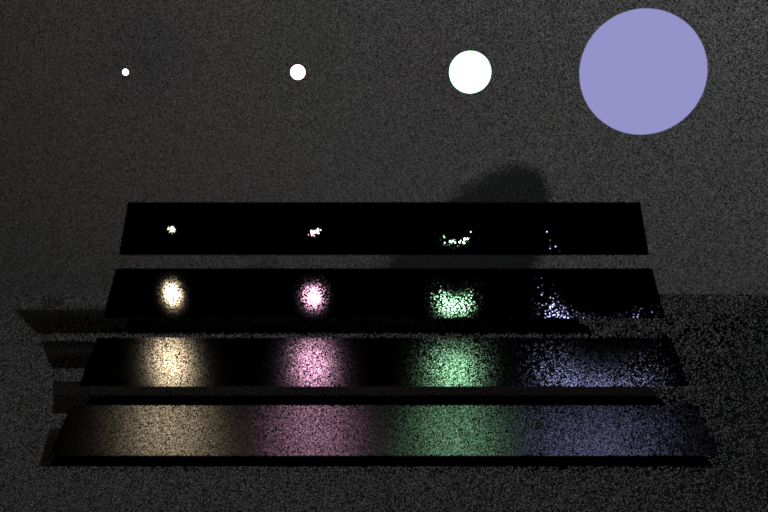

  • Light sampling is the mirror image: clean where lights are large, noisy on the near-specular plates, where a point sampled on a light almost never lands inside the tight reflection lobe.

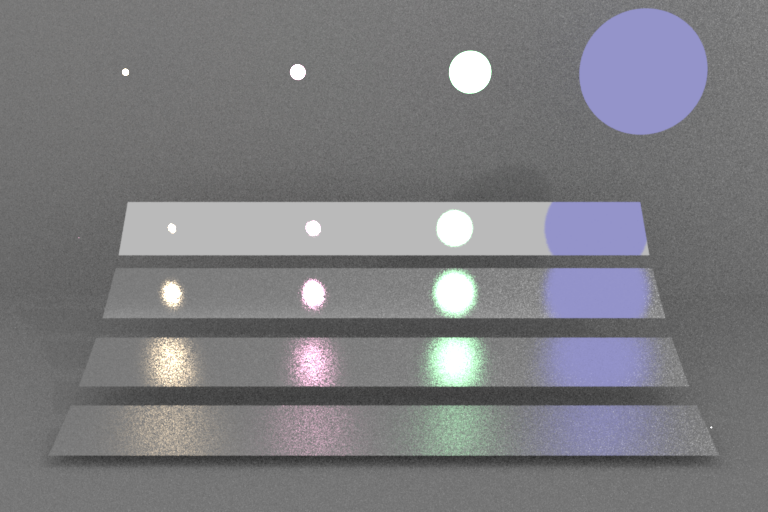

  • The path tracer combines both per bounce with the power heuristic (β = 2), so each region is denoised by whichever strategy samples it well. It is also a full path tracer, so unlike the two single-bounce direct modes it additionally carries indirect illumination — which is why this is MIS path tracing rather than a direct-only MIS estimator.
